RDM-capable DMX splitter, 1 in/4 out with signal boost
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Connections: 2 x DMX input (parallel), 2 x DMX feed-through output (parallel), 4 x DMX output

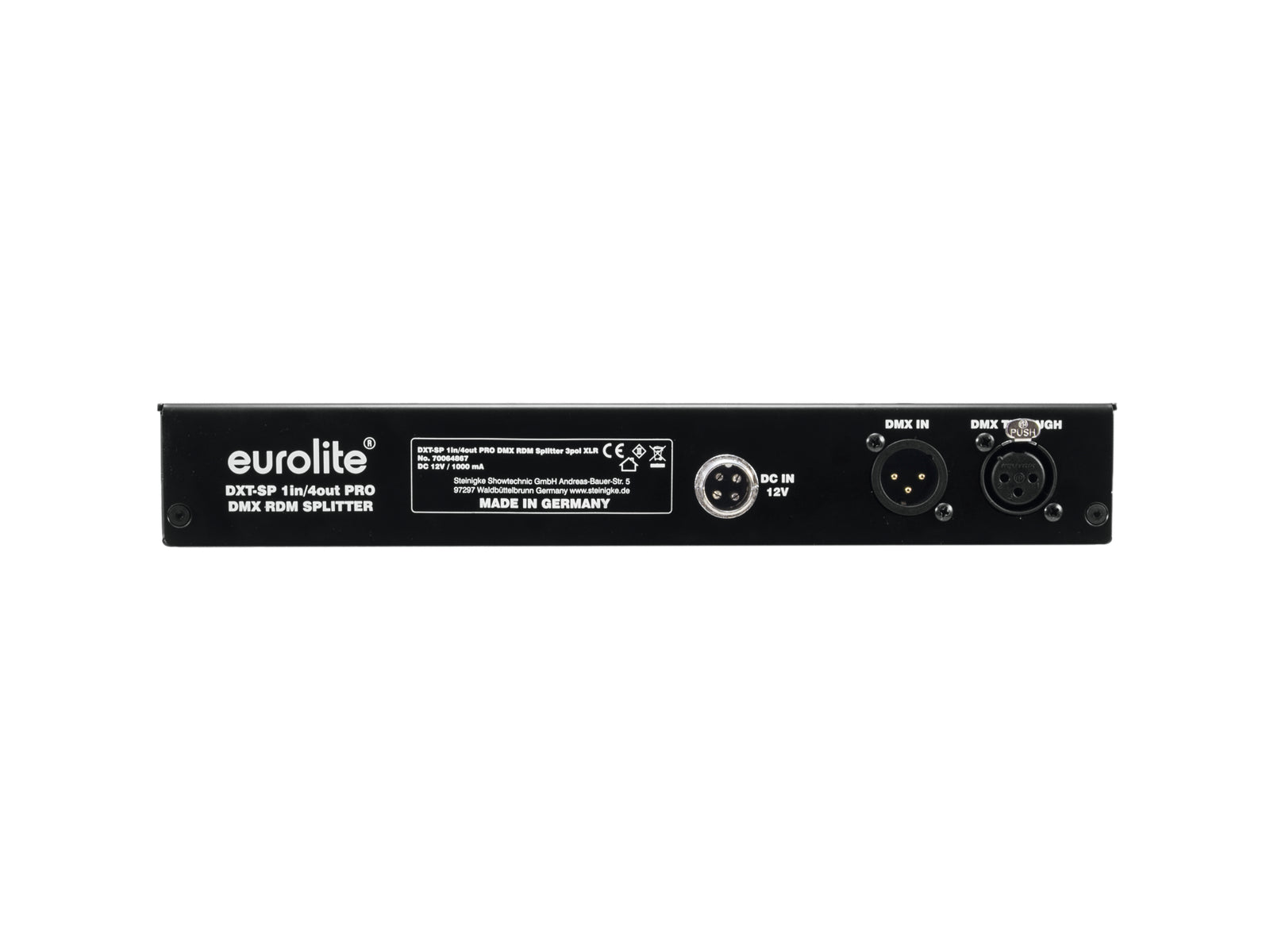

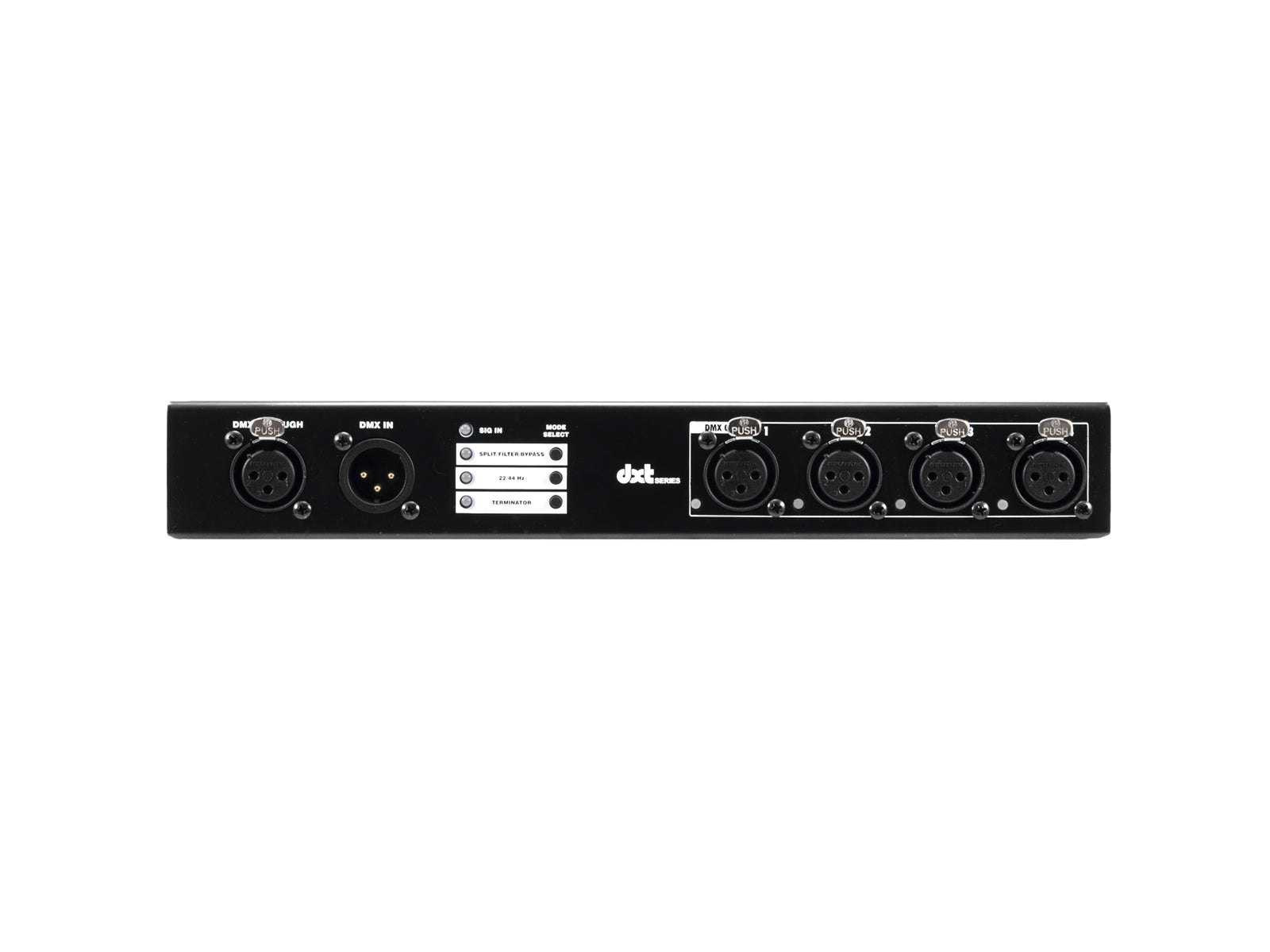

- Input and feed-through output are duplicated on the front and rear panel and connected in parallel
- Supports RDM for bidirectional communication over the DMX line
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- DMX fail mode selectable: hold, blackout, null
- Switchable termination resistor
- Input and outputs XLR 3-pin (Neutrik)
- Outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Each DMX output can be connected to 32 DMX devices
- Powered via included PSU
- Rack installation via optional rack mounting kit (item 70064872)
- DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM - Made in Germany
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | 3.6 W |
| Power connection: | Mains input 4-pin screw plug connector (m) mounting version Power supply cord with AC adapter (provided) |
| DMX input: | 2 x 3-pin XLR (M) mounting version NEUTRIK |
| DMX output: | 4 x 3-pin XLR (F) mounting version NEUTRIK Separate (galvanic) with independent driver and status indicator |
| 2 x 3-pin XLR (F) mounting version NEUTRIK Bypass | |
| DMX features: | DMX fail mode (hold, blackout, null) DMX feed-through for up to 32 further DMX devices RDM For bidirectional communication over the DMX line RDM switchable to prevent problems when using fixtures without RDM |
| Width: | 27.5 cm |
| Height: | 4.1 cm |
| Depth: | 10 cm |
| Weight: | 1.21 kg |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397572469 | 1,40 kg | 32,5cm x 24cm x 5,5cm |
