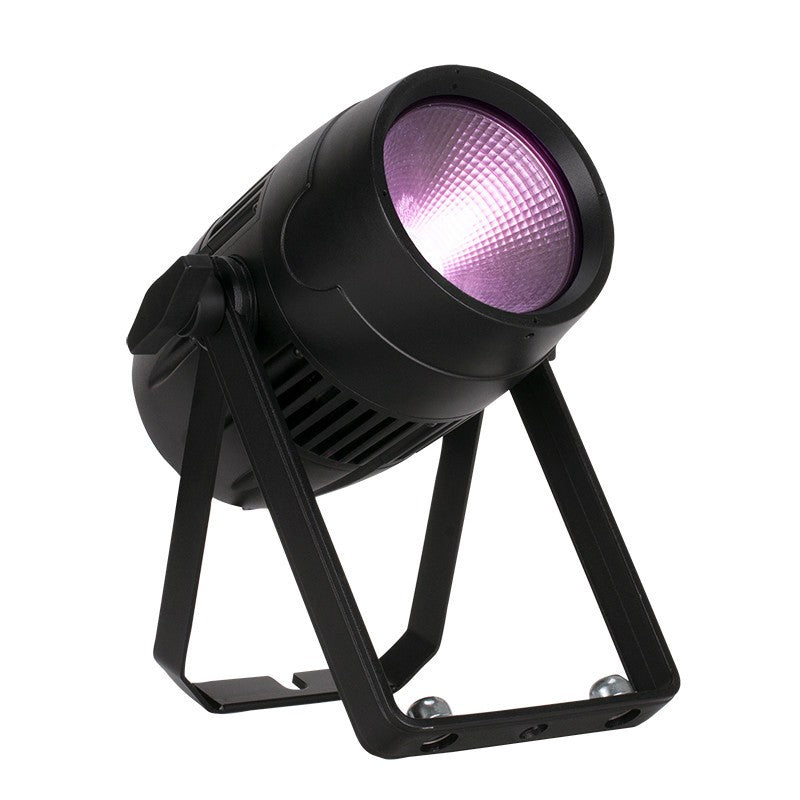

The ADJ Encore Burst UV IP is a high intensity, IP65 outdoor rated UV Washer/Strobe with a 50W UV C.O.B.LED. The fixture is constructed of a rugged metal housing. The fixture features a 50-degree beam angle.

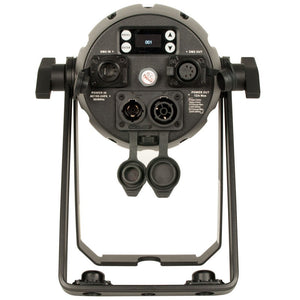

The Encore Burst UV IP has different selectable dimming curves, strobe effect, 4-button LED menu system, IP65 rated, 5-pin DMX In/Out plus IP65 Locking Power IN/Out connections to daisy chain power (rubber protective covers over all connections).
|

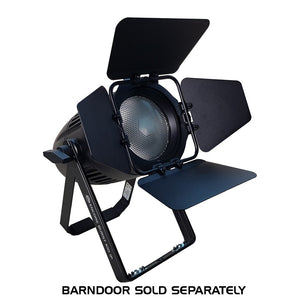

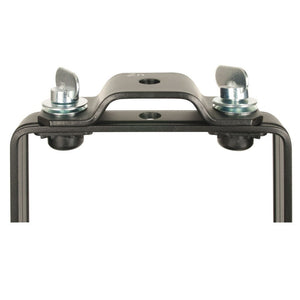

Specifications: Source • Light Source: 1 UV COB-LED • Individual LED wattage : 50W • Average LED lifetime : approximately 50,000 hrs. • UV wavelength : 365nm Optics • Beam Angle: 50 degrees Control • 2 operational Modes : Manual UV Dimmer Mode and DMX Control • 4 DMX Modes: 1, 2, 3 & 6-channel • RDM compatible • 16bit Electronic Dimming: 0 - 100% • 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2) • Adjustable Dim Speed 0,1secs - 10secs • Adjustable LED refresh Rate : 900Hz - 25kHz • Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.6/2.8 • LED pulse and strobe effect • 4-button, DMX digital touch OLED display on rear panel Colors • UV (365nm) Construction • Metal Housing • IP Rating: IP65 • Scissor yoke • Optional Quicklock Bracket (order Code 9900007439 OmegaBracket 108mm) • Optional Barndoors (order Code 1226100380) Electrical • Multivoltage 100-240V 50/60Hz • Power Consumption: 63W Connections • 5-pin IP65 Locking DMX In/Out connections • IP65 Locking Power In/Out connections Dimensions & Weight • Dimensions (LxWxH): 234 x 249 x 308mm • Weight: 3,76 kg. |
