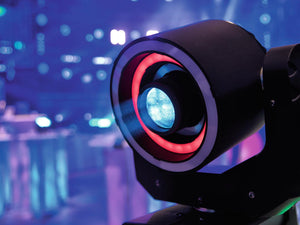

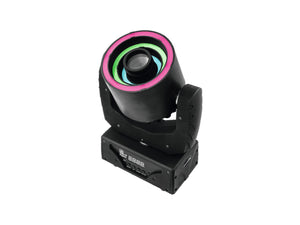

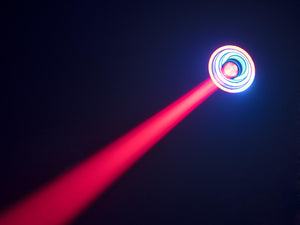

Narrow angled spotlight with 3 hypno rings, 30 W LED, gobo and color wheel
- Spot effect with a powerful white 30 W COB LED and 3 hypno rings with altogether 76 RGB SMD LEDs
- Compact lightweight
- 12 or 23 DMX channels selectable
- Color wheel with 9 different dichroic color filters plus white
- Gobo wheel with 9 static gobos plus open
- With gobo shake function
- Masterdimmer
- Strobe effect with 1-25 flashes per second and with adjustable speed
- Random strobe effect
- Internal programs
- Manual focus
- LED hypno rings with stepless RGB color mixture - each color and each ring can be controlled individually, color presets and color changes
- Automatic position correction
- Positioning within 630° PAN and 210° TILT
- PAN-angle switchable between 630° and 540°
- Exact positioning via 16 bit PAN/TILT movement resolution
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Sound-controlled via built-in microphone, sensitivity adjustable
- Addressing via control panel with 4-digit LED display
- Switch-mode power supply for operation between 100 and 240 volts
- Ready for connection with power cord and safety plug
- LED: 76 x SMD 3in1 TCL RGB (homogenous color mix)
- LED: 1 x COB (chip-on-board) 30 W Color wheel
- Color wheel 9 dichroitic colors and open
- Control: Stand-alone; Sound to light via Microphone; DMX
- Projection: flicker-free
- Effect: Gobo effect; Single Beam
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| LED: | 76 x SMD 3in1 TCL RGB (homogenous color mix) |
| 1 x COB (chip-on-board) 30 W Color wheel | |
| Max. TILT movement: | Exact positioning (16 bit resolution) 210° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Flash rate: | 0 - 25 Hz |
| Equipment: | Gobo wheel with static gobos |
| Color generation: | Color wheel 9 dichroitic colors and open |
| Gobos: | Gobo wheel with static gobos, 9 gobos and open |
| DMX channels: | 12; 23 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone |
| Sound to light via Microphone | |
| DMX | |
| Beam angle (1/2 peak): | 4.7° |
| Housing color: | Black |
| Width: | 24.5 cm |
| Height: | 35 cm |
| Depth: | 16.5 cm |
| Weight: | 5.35 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397592764 | 6,30 kg | 44cm x 27cm x 34cm |
| 2 | 4026397598858 | 13,65 kg | 56,5cm x 46cm x 36cm |
