Prezzo di listino
€221,00
Prezzo scontato
€221,00
Prezzo di listino
€236,00
Esaurito
Prezzo unitario
per
Imposte incluse.

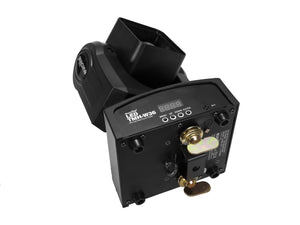

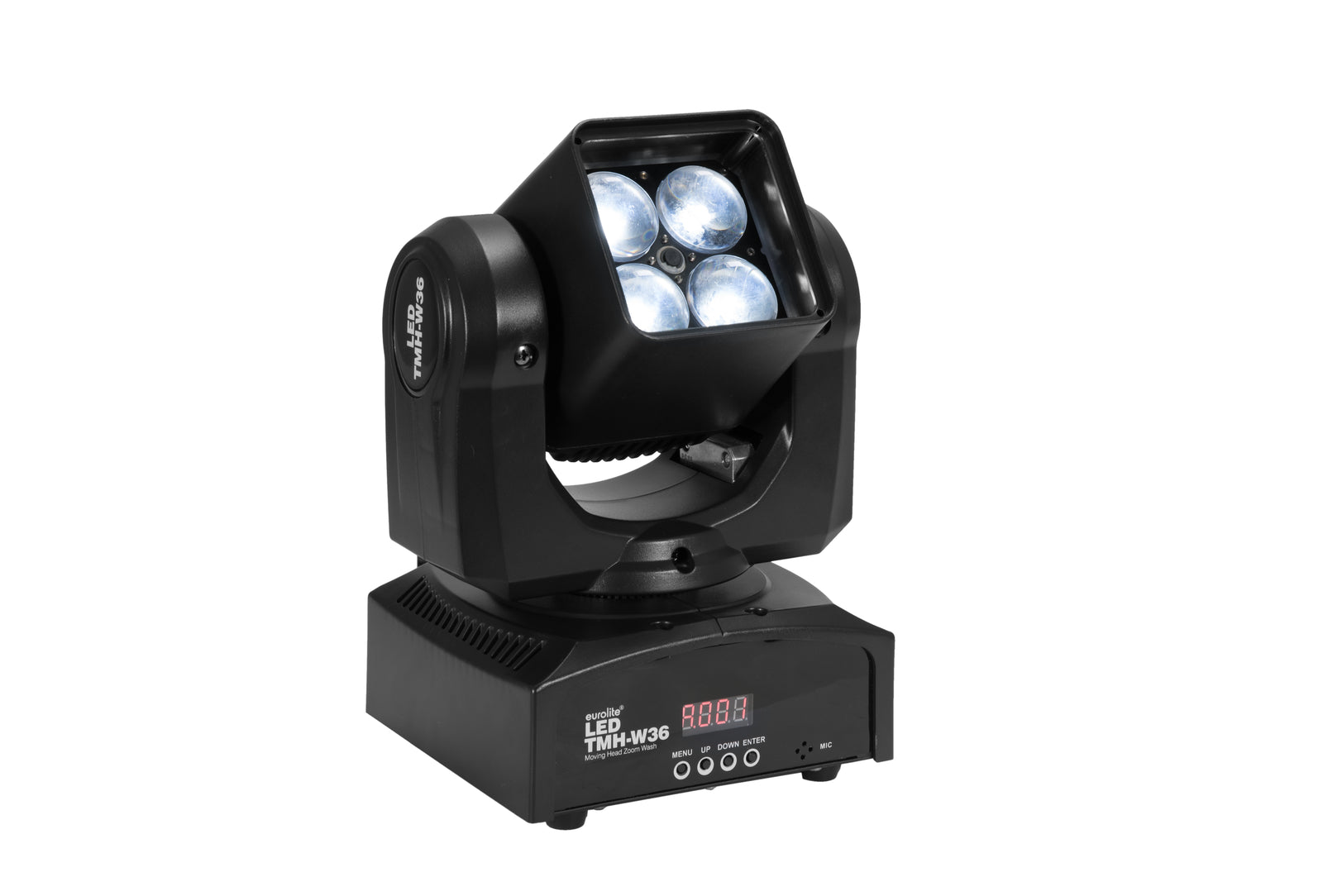

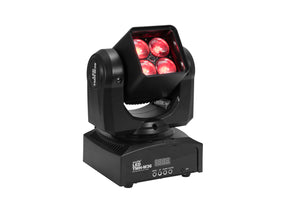

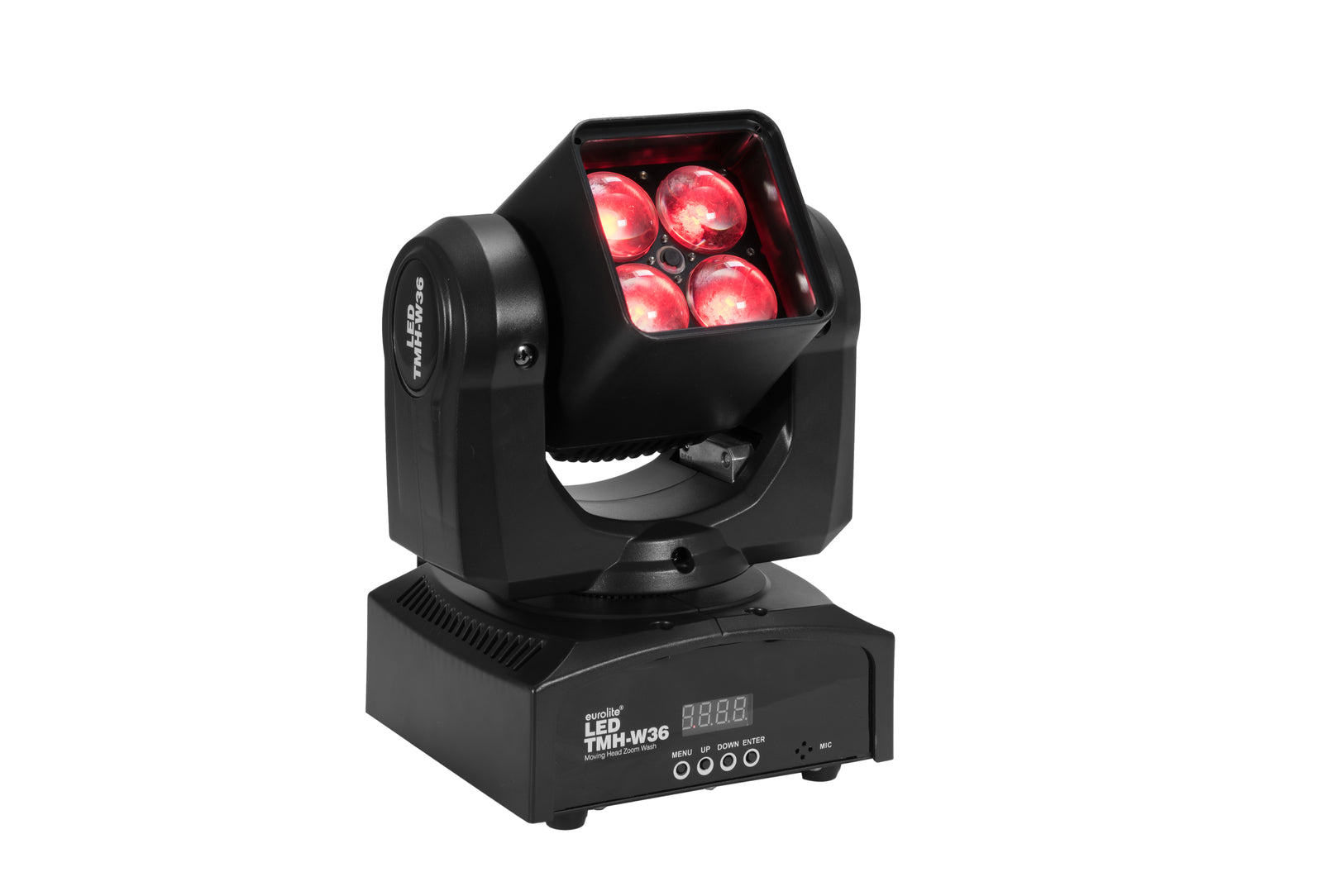

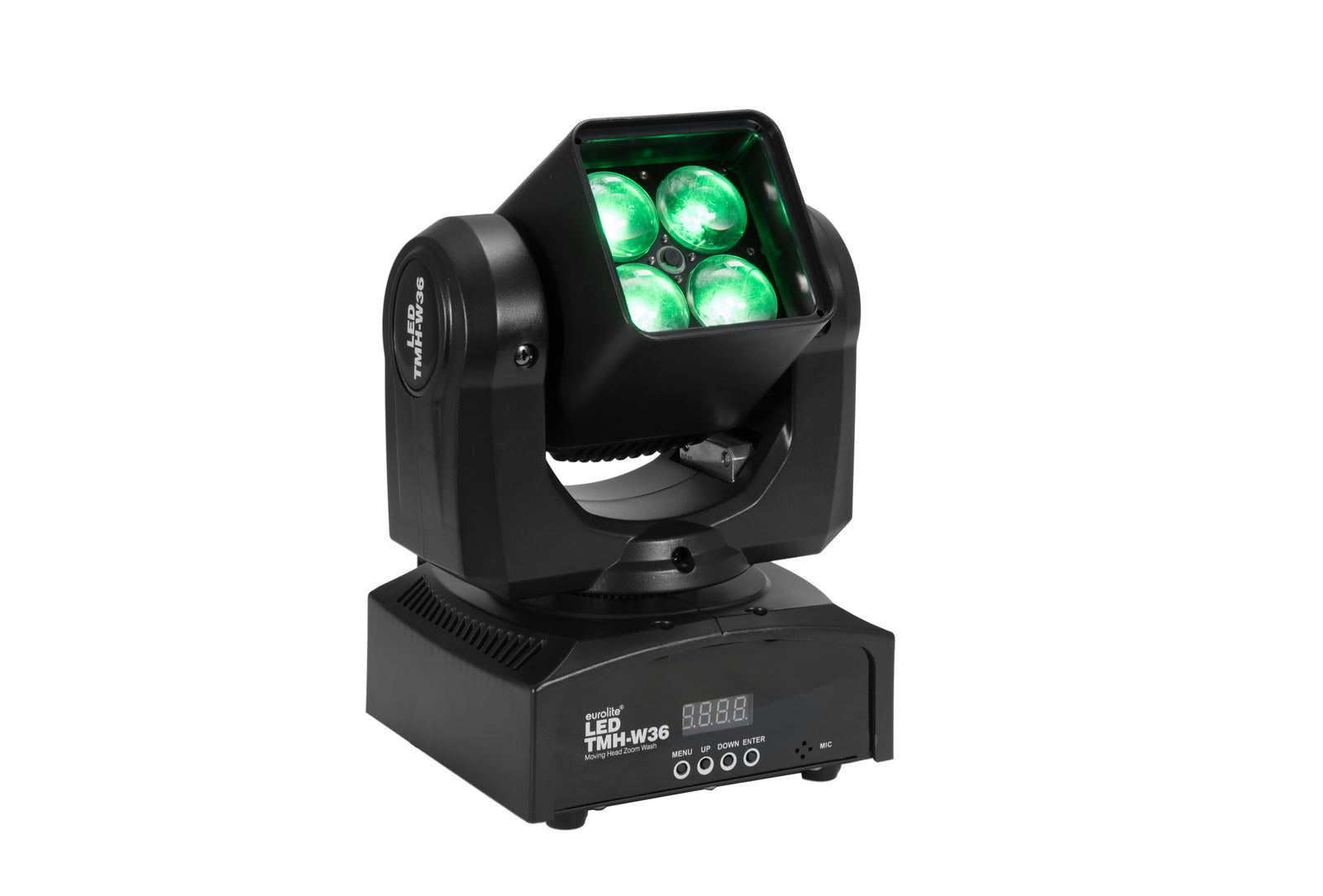

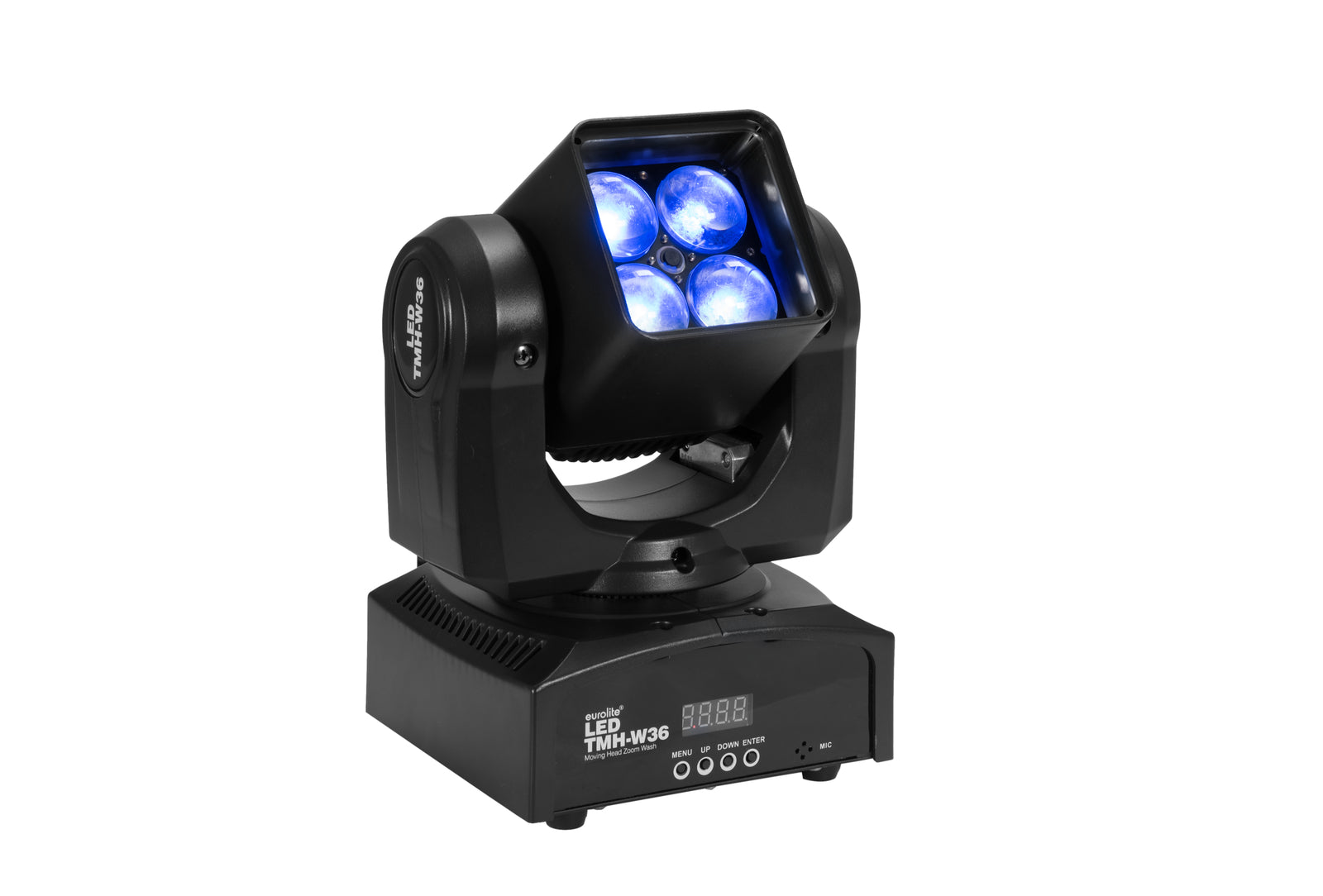

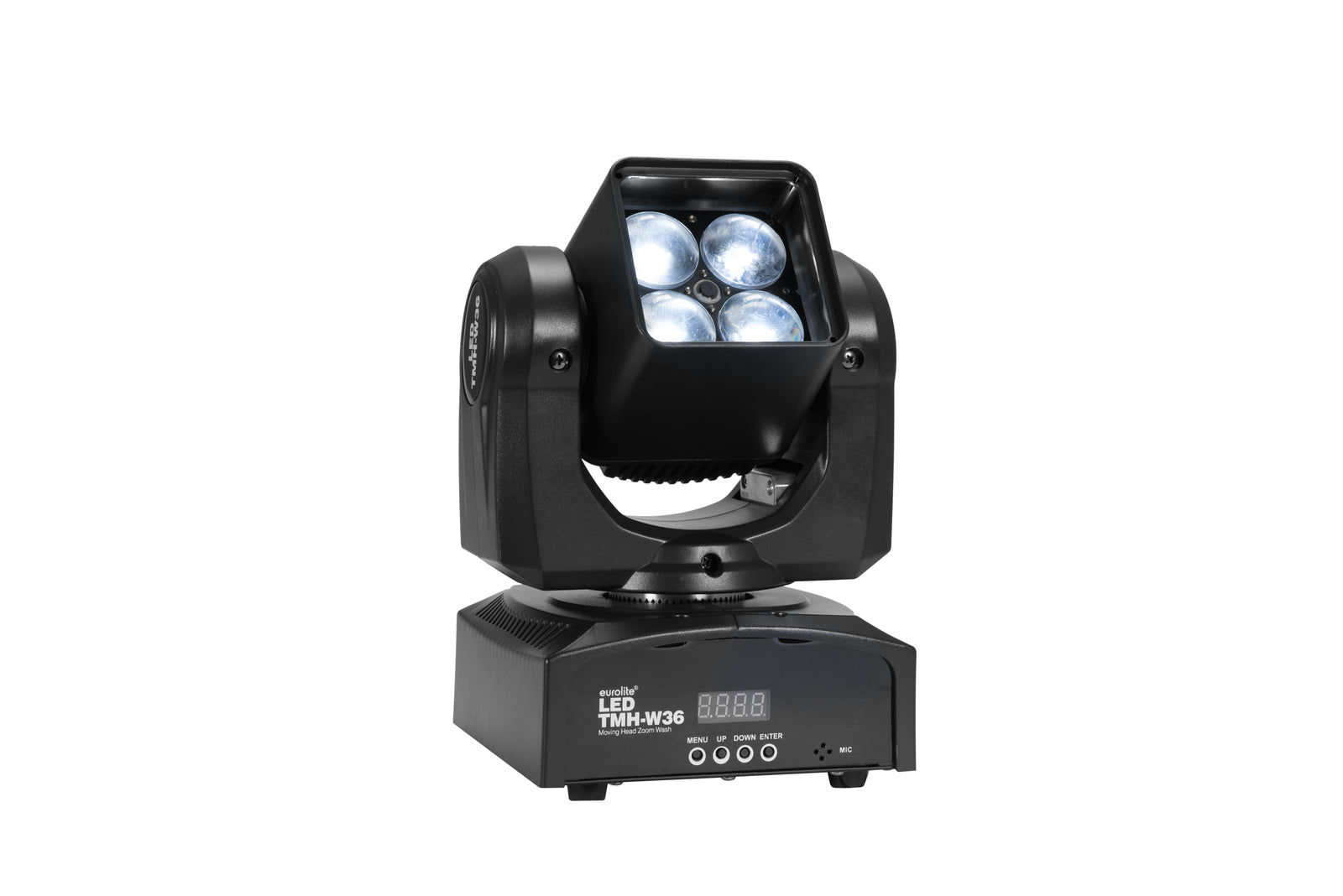

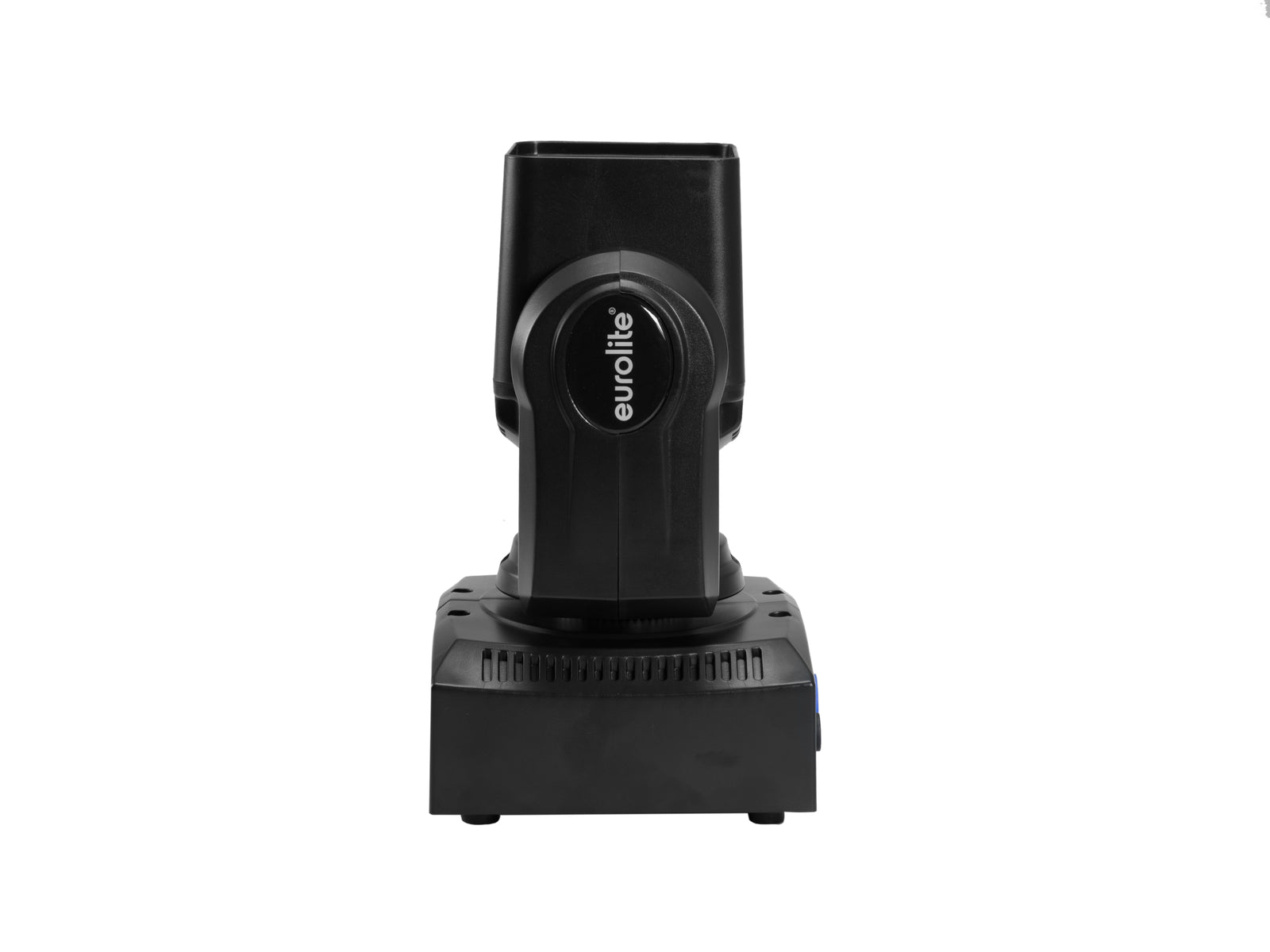

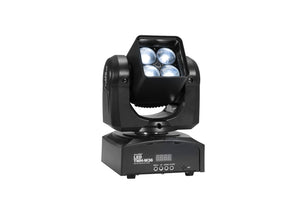

Washlight with 4 intense 9 W LEDs (4in1) and motorized zoom

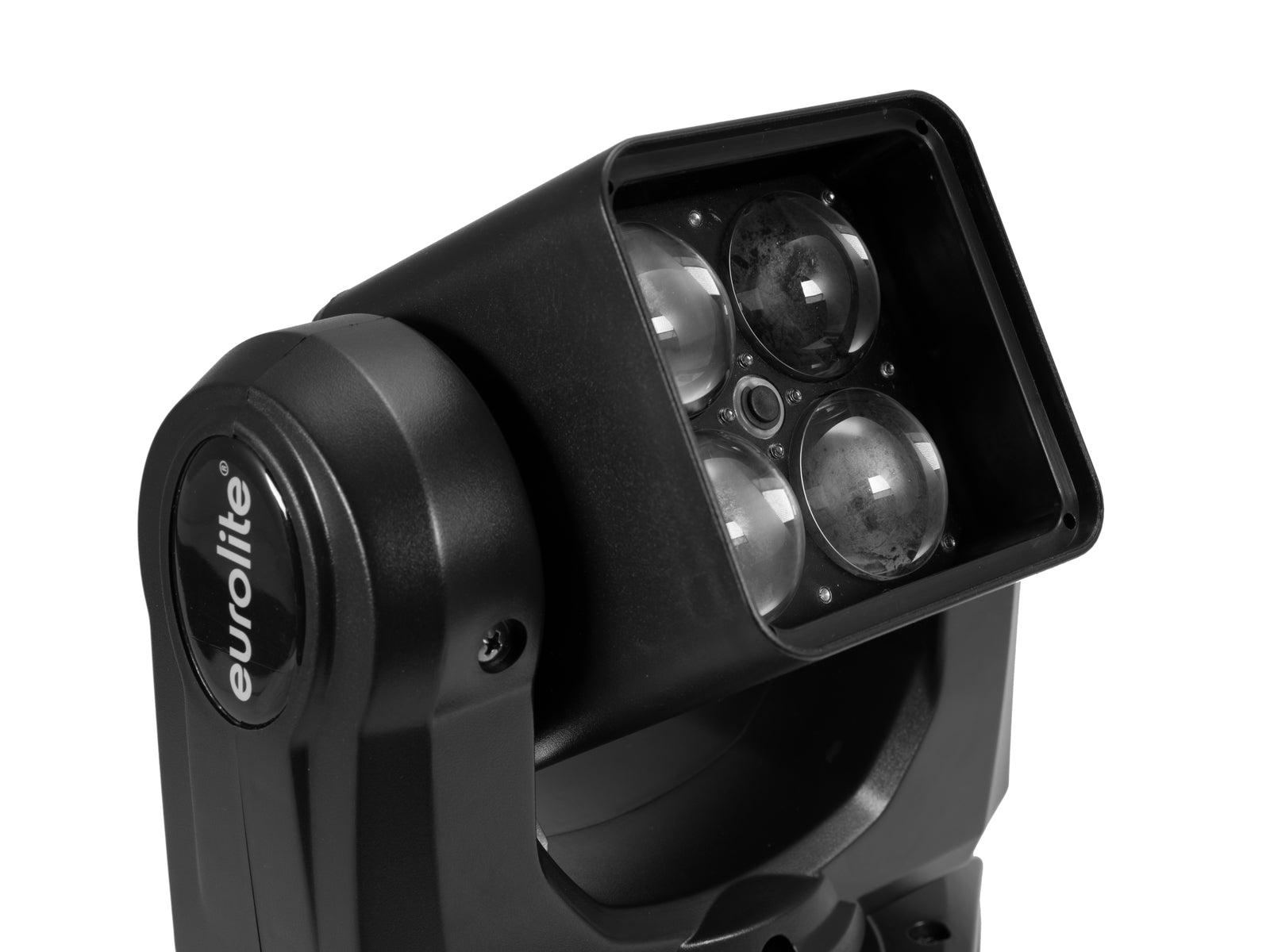

  • 4 high-power 9 W RGBW LEDs (4in1)
  • Positioning within 540° PAN and 220° TILT
  • Stepless RGBW color mixture
  • Built-in auto and music show programs
  • Motion macros
  • Strobe effect with variable speed
  • Strobe effect by random generator
  • Dimmer
  • Motorized zoom with 6-25° beam angle
  • Supports QuickDMX - the wireless DMX-system from Eurolite
  • Built-in phantom-powered USB port for QuickDMX receivers (accessories)
  • Sound-control via built-in microphone with adjustable microphone sensitivity
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Fan-cooled
  • Auto, music, master/slave and DMX mode
  • Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
  • Switch-mode power supply for operation between 100 and 240 volts

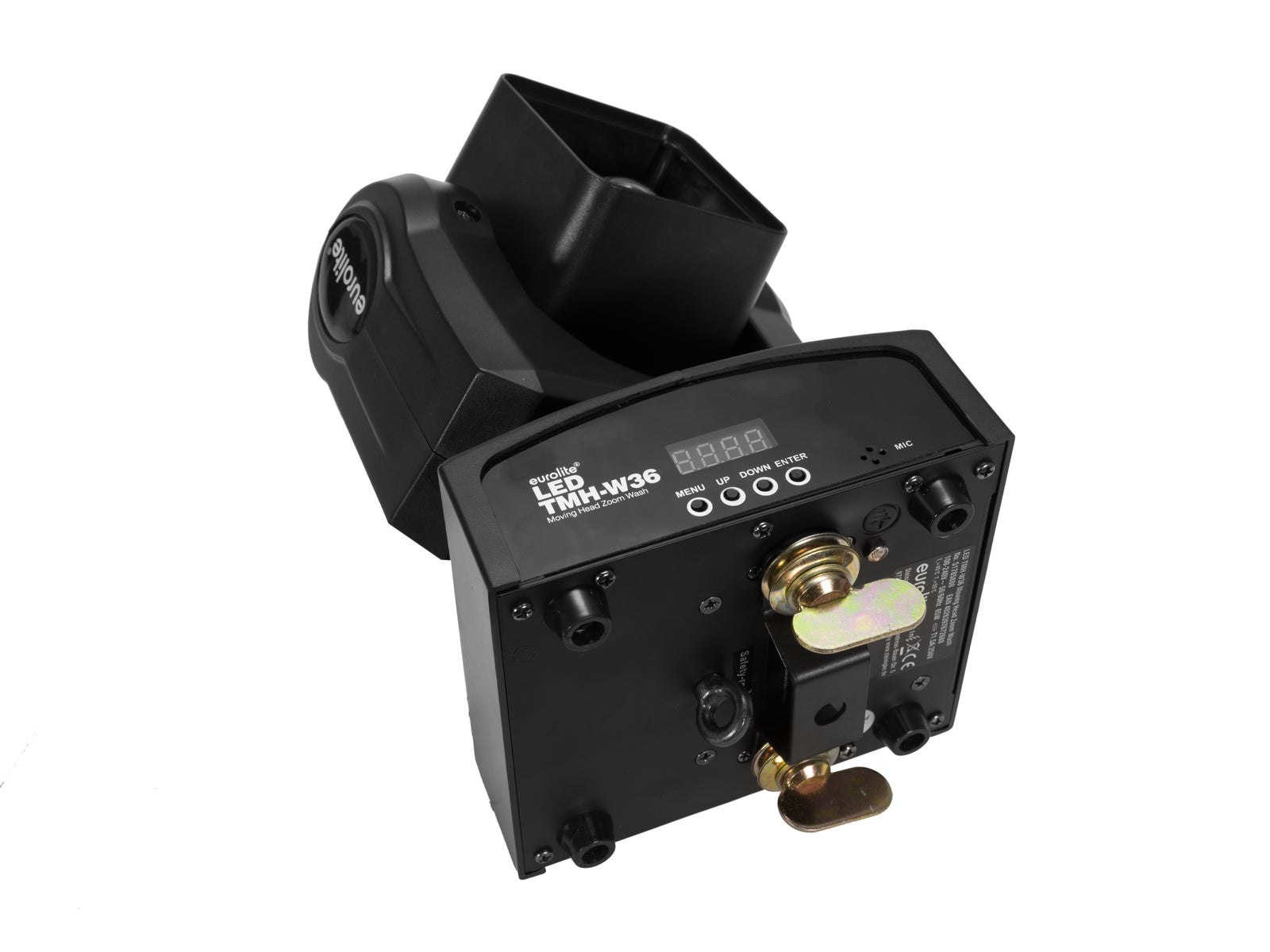

  • Additional rubber feet when the spot shall be positioned on the floor
  • LED: 4 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
  • Control: Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone
  • Projection: flicker-free

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 65 W
IP classification: IP20

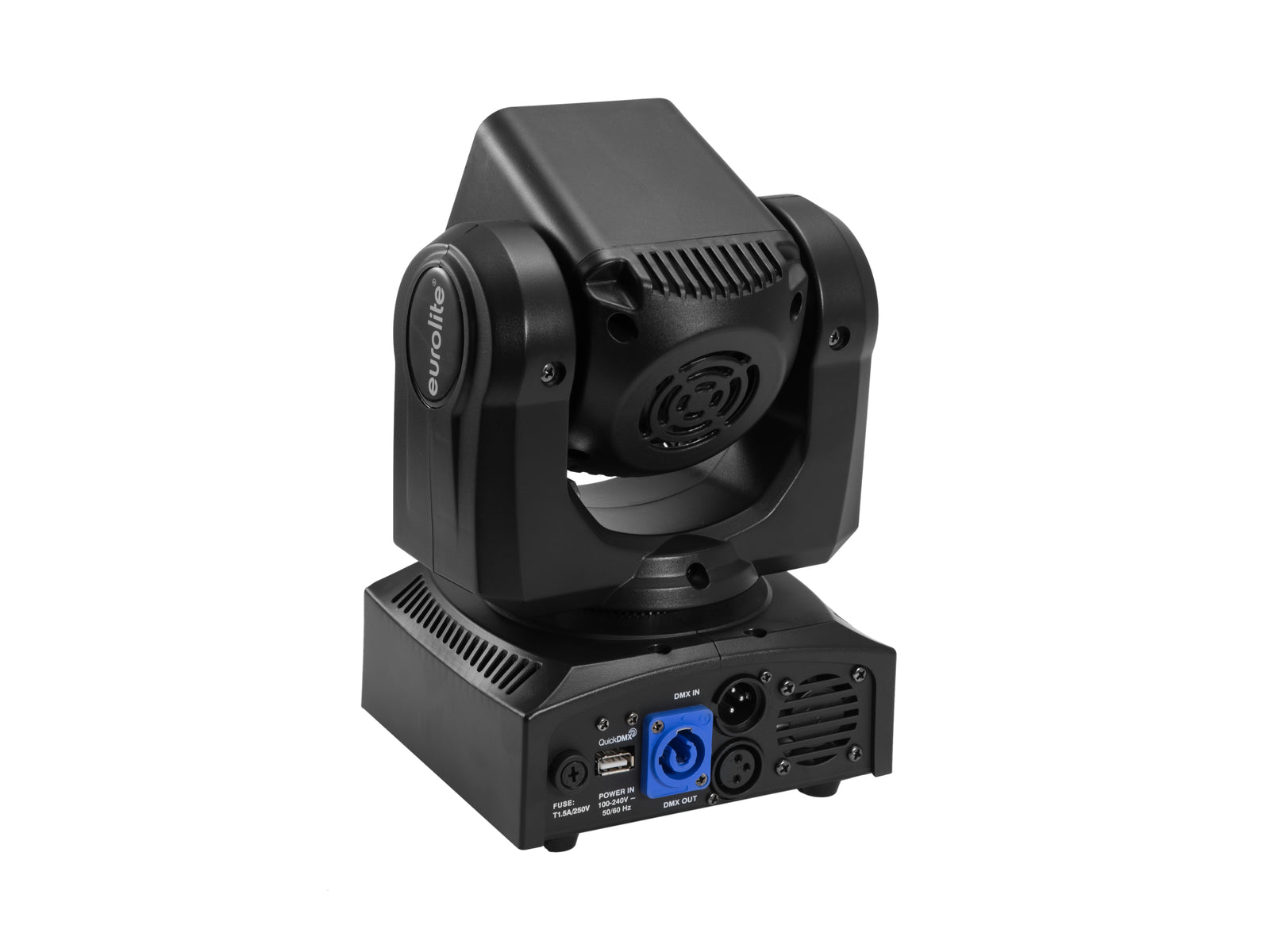

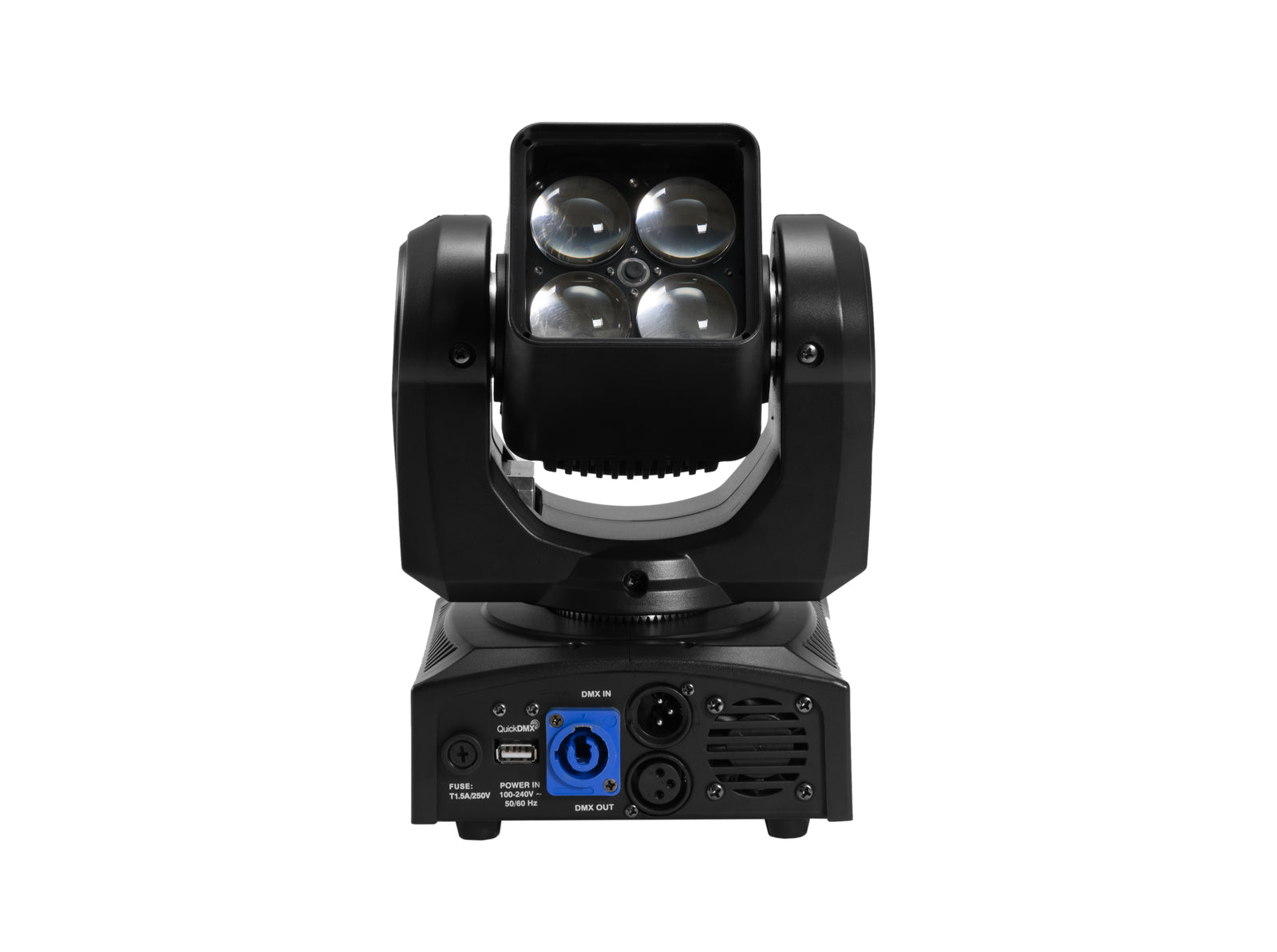

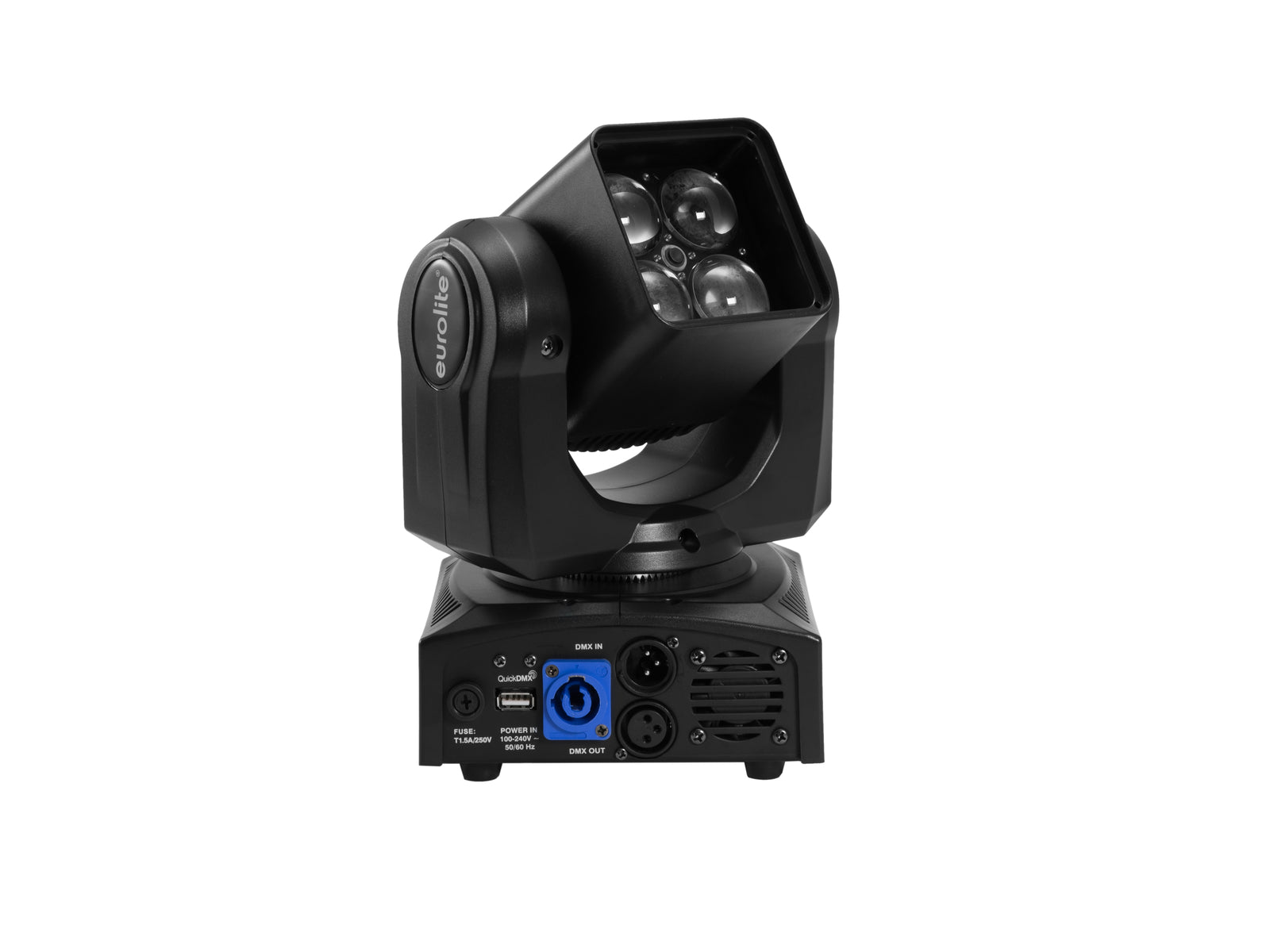

Power connection: Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Fuse: 5 x 20 mm T, 1.5 A Fuse replaceable
LED: 4 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement: Exact positioning (16 bit resolution) 220°
Max. PAN movement: Exact positioning (16 bit resolution) 540°
Equipment: Zoom motor-driven
DMX channels: 15
DMX input: 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: Stand-alone
DMX
QuickDMX via USB (optional)
Master/slave function
Sound to light via Microphone
Beam angle (1/2 peak): 6 - 25°
Beam angle (1/10 peak): 10 - 40°
Illuminance in Lux (lx): Narrow R red 1m: 6781 lx, 3m: 747 lx, 6m: 192 lx
Narrow G green 1m: 12971 lx, 3m: 1381 lx, 6m: 348 lx
Narrow B blue 1m: 2238 lx, 3m: 290 lx, 6m: 73 lx
Narrow CW 1m: 16580 lx, 3m: 1864 lx, 6m: 456 lx
Narrow all 1m: 36301 lx, 3m: 4064 lx, 6m: 1011 lx
Wide R red 1m: 746 lx, 3m: 85 lx, 6m: 24 lx
Wide G green 1m: 1343 lx, 3m: 164 lx, 6m: 44 lx
Wide B blue 1m: 291 lx, 3m: 35 lx, 6m: 10 lx
Wide CW 1m: 1852 lx, 3m: 214 lx, 6m: 58 lx
Wide all 1m: 4023 lx, 3m: 471 lx, 6m: 127 lx
Housing color: Black
Width: 15.5 cm
Height: 25.5 cm
Depth: 14.5 cm
Weight: 2.95 kg
Legal specifications
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
PACKAGING UNITS
PU EAN WEIGHT DIMENSIONS
1 4026397672688 3,40 kg 29cm x 22cm x 27,5cm
6 4026397675757 21,35 kg 68cm x 32cm x 57,5cm
